RS MicroCutter®
Precision milling with integrated swivel gearbox
With the MicroCutter®, you can effortlessly and flexibly mill the pipe to be rehabilitated.
Properties:
- For pipe inner diameters from 80 mm to 200 mm

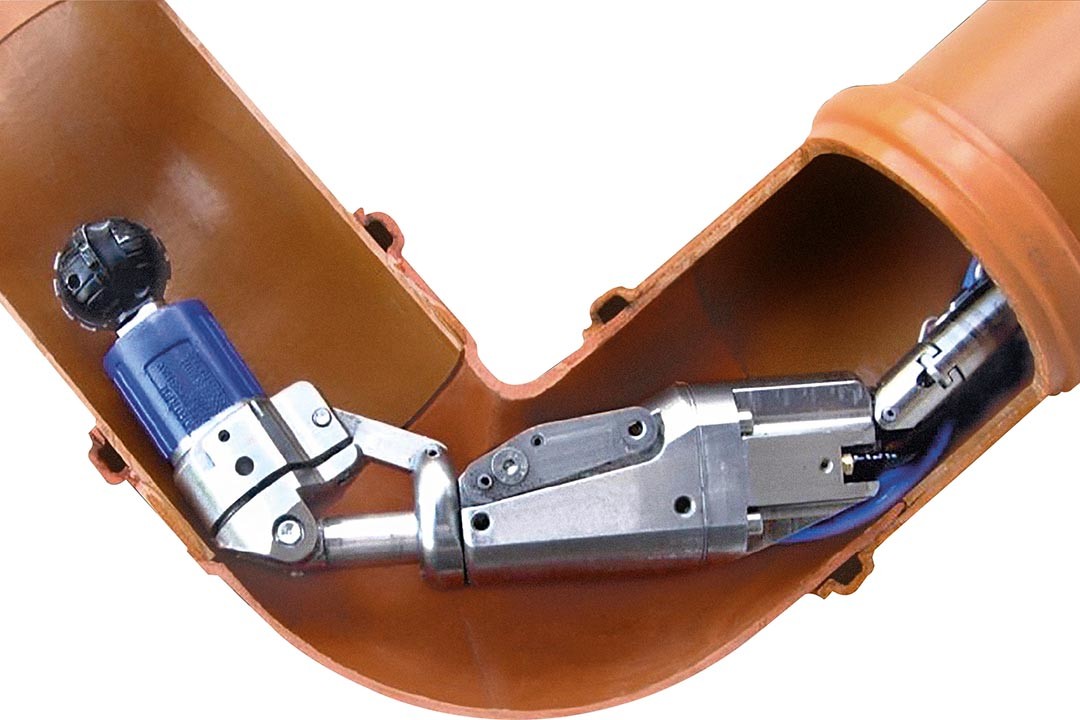

- Bends up to 90°
- Can be clamped in the pipe (exact milling)

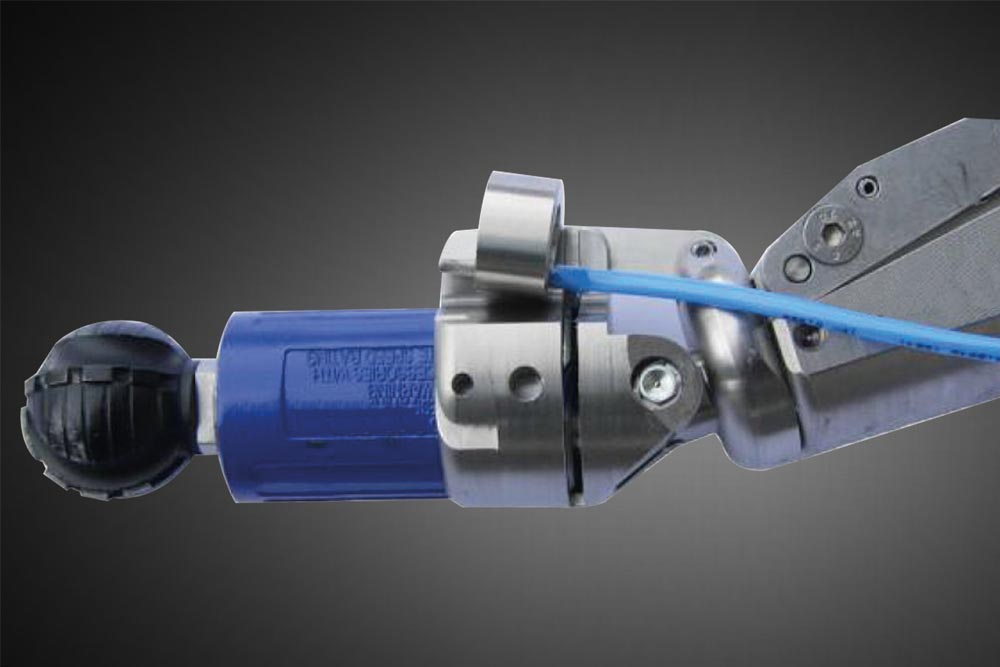

- With integrated swivel gearbox for precise work
- Purely pneumatically operated

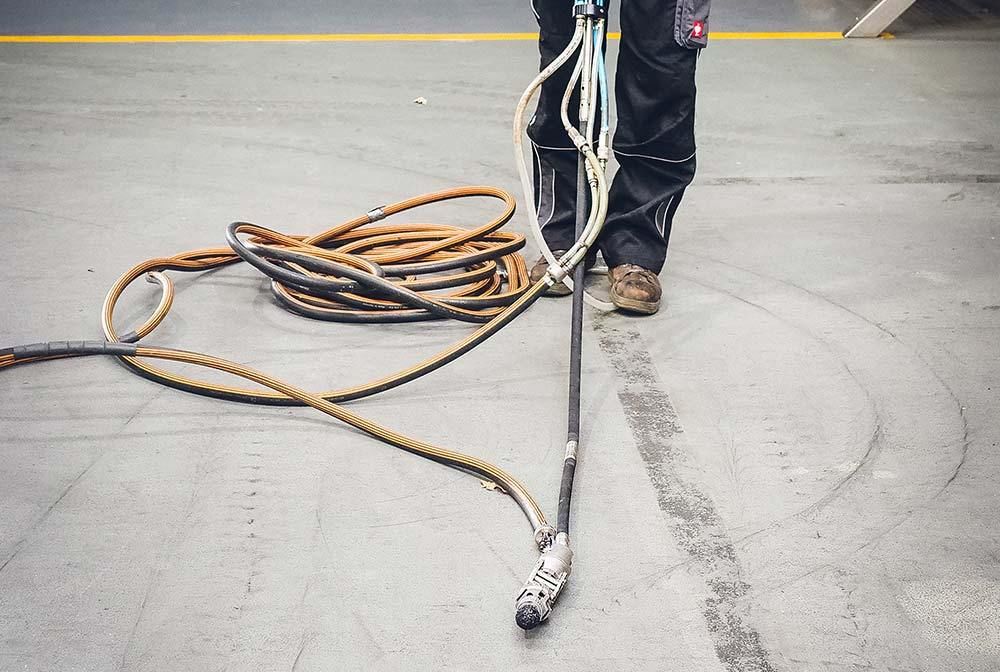

- Scope of delivery: Plastic box incl. MicroCutter with pneumatic motor and 20 m supply hose, operating handle, camera holder, accessories for the pipes – inner diameter 80 mm – 200 mm – and the necessary tools
- Easy to use
- Compact and easy to transport

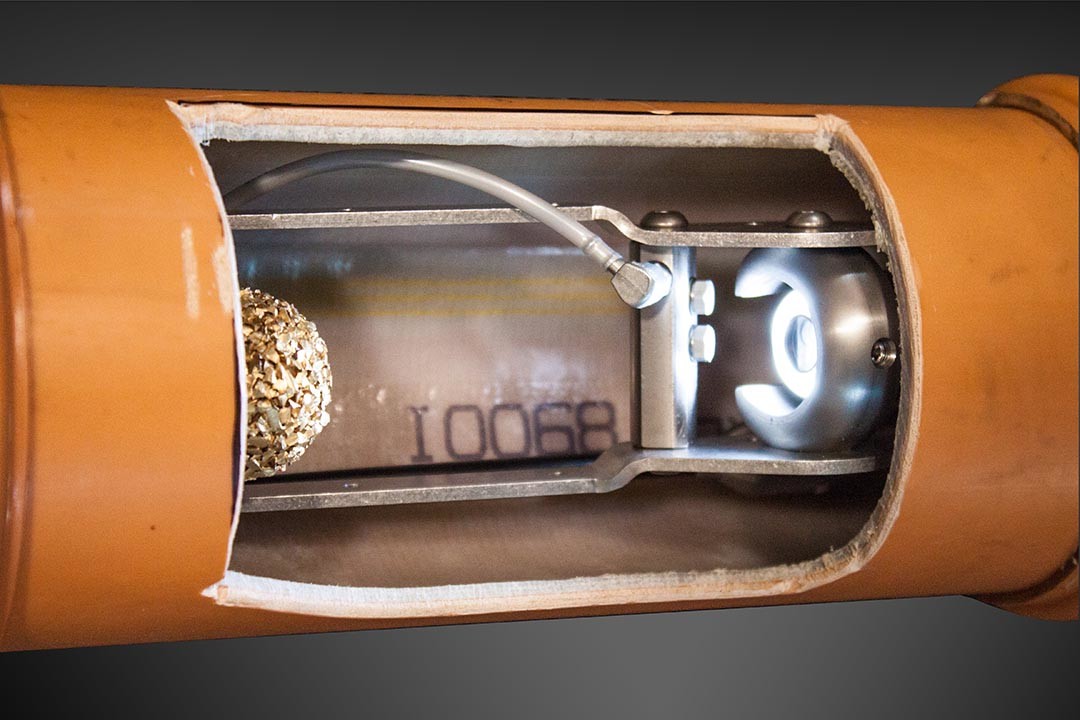

Everything in view
Color camera mC30Duo
Set for pipes from 15 – 200 mm
- Camera heads Diameter: 29 mm and 13 mm
- Monitor 5.6″ TFT5R with recorder in carbon case
- Stainless steel reel with handbrake
- 15m Push-pull cable on inner reel basket
- 30 m / 6.7 mm, glass fibre tape on outer reel basket
- Control unit with continuously variable light regulation
- Meter counter with electronic video insertion
- Battery, for over 2 hours of use
Do You Have Questions?
Would you like to know more, do you have a specific question about the RS MicroCutter® or would you like to place an order? We will be happy to help you directly.
Markus Dinklage
Sales Manager DE
Jürgen Haug
Sales Manager AT
Christoph Turk
Sales / Technical Management
Franziska Rosser
Authorised Signatory
Technical specifications
Diameter range from 80 mm up to 200 mm
• DN 80 to DN 200
Technical specifications
• Dimensions: L x Ø = 290 mm x 63 mm
• Clamping radial: 27 mm
• Swing gear: reduction ratio i = 1 : 2,36
• Radial deflection: 92° of the milling head
• Radial stroke: 110 mm
• Weight MicroCutter: 2,8 kg (without pneumatic motor and accessories)
• Weight Equipment: 19,5 kg
• Air requirement: at least. 700 l / min. at 8 – 10 bar
• Motor power: approx. 0,37 kW at 22,000 rpm
Product information as pdf download
