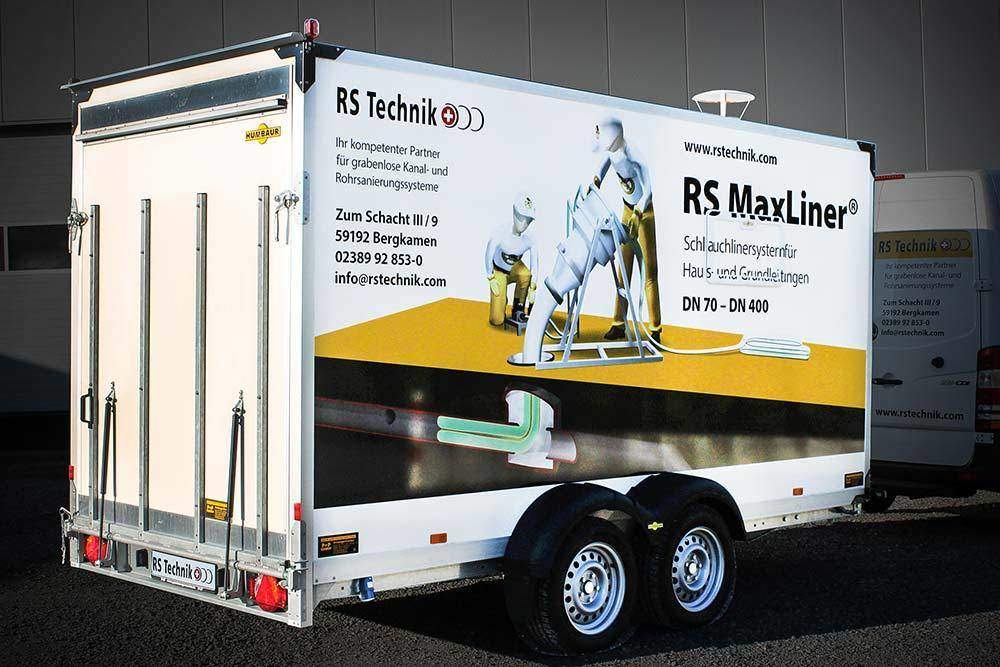

Curing at any time, in any place
The great advantage of epoxy resin systems is the safe curing by heat. Various devices are available for this purpose. With our steam trailer, the curing of liners takes place directly on site.
Technical specifications
Possible applications of the RS Steam Trailer
• Domestic and underground pipes of all kinds from the basement to the sewage system
• Pipes are renovated vertically from the roof to the basement
• Drainage pipes for garage, garden and forecourt
• Lengths of up to 100 m with bends up to 90 ° possible
• All types of host pipe materials
• Selective renovation of connectors and holes
• Installation through existing channels and openings
Diameter range
• DN 70 mm to DN 400 mm (3″ bis 16″)
Technical specifications
• Loading height: approx. 530 mm
• Permissible total weight: 2500 kg
• Payload: approx. 1550 kg
• Inner box dimensions: 4010mm x 1810mm x 2000 mm
Basic equipment for the RS steam trailer
• Closed floor made of anti-slip screen printing plates, sealed
• walls and roof in plywood, waterproof glued with special plastic coating
• Hinged doors incl. door stop, 270° reversible, lockable via espagnolette lock
• Powder-coated steel corner reinforcements for additional stability
• Border profiles at the door opening and rain strip above the door
• Torsion-resistant rear portal
• Screwed and galvanized German brand chassis
• Original Humbaur axle (!)
• Maintenance-free rubber spring axles with independent wheel suspension
• Braked with automatic reversing
Quality control
• RAL-Quality mark S27.10 (Water) & S27.2 (Steam)
• DIBt – Approval Z-42.3 – 389
• DIBt – Approval Z-42.3 – 454
• DIBt – Approval Z-42.3 – 487 [inside buildings]
Product information as pdf download
Devices
Consumables
Extension variations
